XGBS（W）型平板格栅、格网
XGBS（W）型平板格栅、格网
◎ 工作原理
XGBS(W)型平板格栅、滤网垂直安插于水渠中，用以拦截较小直径漂浮夹杂物，达到减轻后续工序处理负荷的一种简易装置。
◎ 特点
本设备具有具有刚性好，多面挺直，截污性能优越、投资省等特点。
◎ 用途
XGBS(W)型平板格栅、滤网常用于城市给水、工业给水等工程。

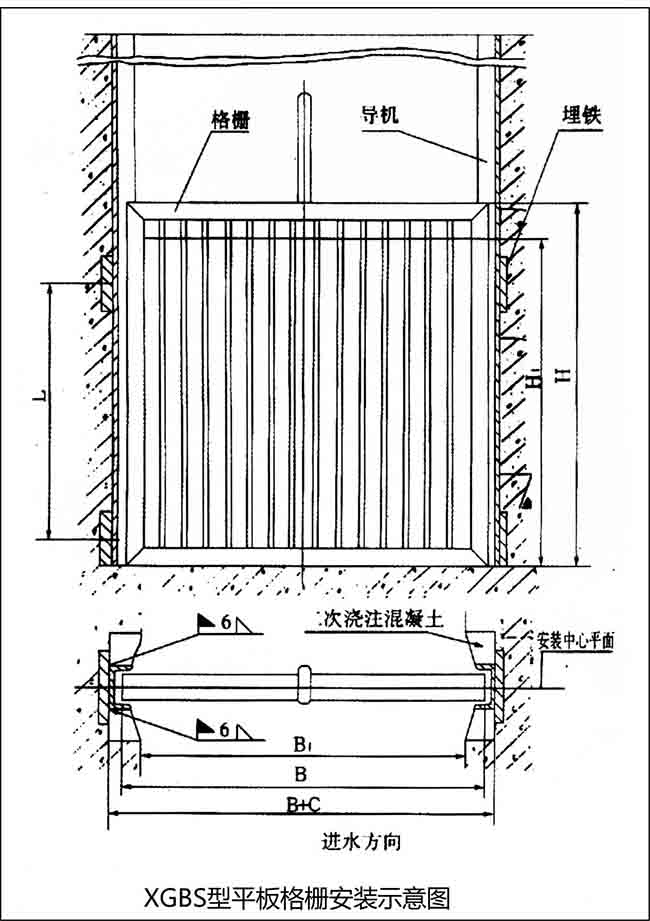

◎ 规格型号及技术参数
|
进水口 B1×H1 |
格栅 B×H |
间隙 C |
导轨 规格 |
进水口 B1×H1 |
格栅 B×H |
间隙 C |
导轨规格 |
|
700x700 |
800x800 |
30 |
（10 |
1300x1700 |
1400x1800 |
50 |
〔18a |
|
700x900 |
800xl000 |
1500x1100 |
1600x1200 |
||||
|
700x1100 |
800x1200 |
1500x1300 |
1600x1400 |
||||
|
900x700 |
10OOx800 |
1500x1500 |
1600x1600 |
||||
|
900x900 |
1000x1000 |
1500x1700 |
1600xl800 |
||||
|
900xll00 |
1000x1200 |
1500x1900 |
l600x2000 |
||||
|
900x1300 |
1000x1400 |
30 |
〔14a |
1700x1300 |
1800x1400 |
||
|
1100x700 |
1200x800 |
1700x1500 |
1800x1600 |
||||
|
1100x900 |
1200x1000 |
1700x1700 |
1800x1800 |
||||
|
1100x1100 |
1200x1200 |
1700x1900 |
1800x2000 |
||||
|
1100x1300 |
1200x1400 |
1700x2100 |
1800x2200 |
||||
|
1100x1500 |
1200x1600 |
1000x1500 |
2000x1600 |
||||
|
1300x900 |
1400x1000 |
1900x1700 |
2000x1800 |
||||
|
1300x1100 |
1400x1200 |
1900x1900 |
2000x2000 |
||||
|
1300x1300 |
1400x1400 |
1900x2100 |
2000x2200 |
||||
|
1300x1500 |
1400x1600 |
|
|
